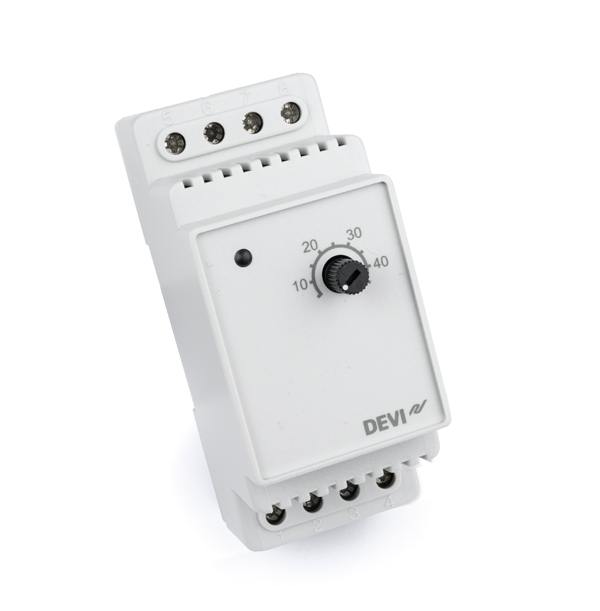

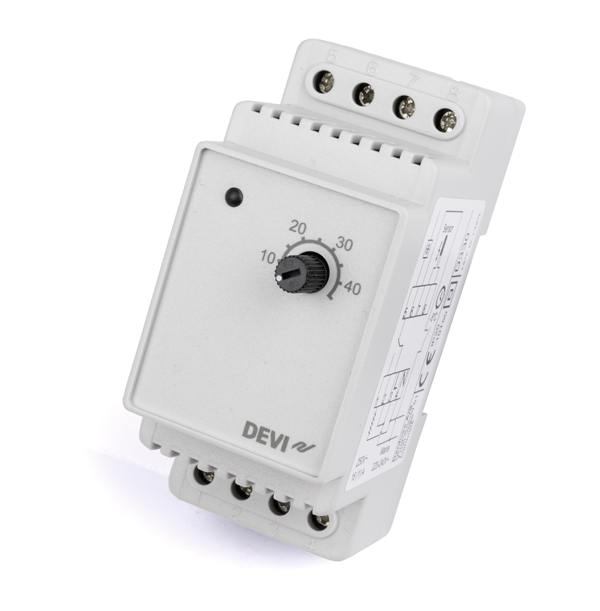

DEVIreg 330 Thermostat | 5 to 45c | 140F1072

$206.00 Incl GST

DEVIreg™ 330 is a simple electronic thermostat to be installed in electric cabinets with DIN rail attachment.

The series is designed with thermostats in three temperature ranges. At Sydney Floorheating, we supply the DEVIreg 330 (140F1072) with a temperature range of 5 to 45c.

DEVIreg™ 330 (5 – 45°C) is used primarily for controlling lower temperature range such as frost protection and for cooling, Comfort Floor Heating, Total (Direct) Floor Heating, Ice and Snow Melting on Ground, Frost Protection on Roofs, Pipe Tracing, etc. The thermostat has a button to adjust the temperature setting with a scale from 5°C to 45 °C. This type has temperature lowering in economy periods mode by using external timer.

DEVIreg™ 330 is a simple electronic thermostat to be installed in electric cabinets with DIN rail attachment.

The series is designed with thermostats in three temperature ranges.

At Sydney Floorheating, we supply the DEVIreg 330 | 140F1072

DEVIreg™ 330 (5 – 45°C) is used primarily for controlling lower temperature range such as frost protection and for cooling, Comfort Floor Heating, Total (Direct) Floor Heating, Ice and Snow Melting on Ground, Frost Protection on Roofs, Pipe Tracing, etc. The thermostat has a button to adjust the temperature setting with a scale from 5°C to 45 °C. This type has temperature lowering in economy periods mode by using external timer.

Additional thermostats in the DEVIreg 330 range include:

DEVIreg™ 330 (-10 – +10°C) is used primarily for controlling a lower temperature range such as frost protection. This thermostat has a button to adjust the temperature setting with a scale from -10 °C to +10 °C. Special outdoor white wire sensor included in a set.

DEVIreg™ 330 (60 – 160°C) is used primarily for high temperature maintenance in pipe heating systems. The thermostat has a button to adjust the temperature setting with a scale from 60 °C to 160 °C. Special high temperature silicon wire sensor in a set.

Weight 0.33 kg
Dimensions 14 × 9.5 × 8.5 cm

Warranty

A 2-year product warranty is valid for DEVI thermostats, control systems, software solutions, and accessories.

DEVIreg™ 330 products are covered by a 2-year warranty.

Guides & Data Sheets

DEVIreg 330 Data Sheet: Data Sheet

DEVIreg 330: +5 to +45c Installation Guide: Installation Guide
