DIY Floorheating Kits

In-screed DIY mats


In-screed DIY mats are ideal for installation under tiles or stone. The mats have a self-adhesive backing, making them very quick and easy to install in bathrooms, large rooms and other open plan areas.

Our mats are manufactured to the highest standards, using our 6mm twin-core cable with built in earth.
The mats are 50cm wide and rated at 150w per sqm or 200w per sqm.

The typical room coverage, allowing for a gap around the edge of the room is about 80% of the actual free floor area. This is adequate to heat the entire room, however if you were to only heat a small area in the middle of the room, an additional heating source may be required to achieve the warmth you want.

Free delivery within NSW
DIY under floor heating kits Sydney

In-screed mat kit inclusions

Each kit contains
  • Floor Heating Cable (attached to an adhesive mat)
  • Standard Touch Screen Thermostat
  • Floor Heating Sensor
  • Cable Alarm
  • High Tack Woven Cloth Tape
  • Detailed Installation Instructions

    • under floor heating thermostat vertical

    Standard touch screen thermostat

    Thermostat features
  • Programable 7 Day 24 Hour
  • Floor or Air Sensing
  • 2 programming mode options
  • Slimline design
  • Blue back light when operating
  • Responsive touchscreen
  • Thermostat maximum load is 16 amps / 3700 watts.
  • 2 year warranty

    • Optional Thermostats

    For a small additional cost, you can swap out the above standard thermostat for one of the options below.

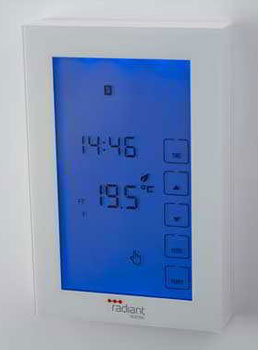

    Glass Front Thermostat

    GTSW-TH-V
    + $50 Incl GST

    Or purchase separately for $216 incl GST

    glass-front-thermostat-gtsw-th-v

    Suitable for lighting, fans & heated towel rails
    Features
  • Programable 7 Day 24 Hour Digital Timer switch
  • Floor or Air Sensing
  • 2 programming mode options
    • Mode 1 - 5/2 timer allows you to set different times for weekdays & weekends Mode 2 - 7 day timer - set all 7 days independent times
  • Slimline design
  • Blue back light when operating
  • Responsive digital touchscreen
  • Thermostat maximum load is 16 amps / 3700 watts
  • 2 year warranty


    • Programming instructions for
    GTSW-TH-V thermostat

    Download

    Dual Thermostat / Timer

    TS8100W-TH/TIM-DUAL-V
    + $50 Incl GST

    Or purchase separately for $188 incl GST

    dual-thermostat-timer-ts8100w

    2 in 1 Timer for your heated towel rail and control for your under floor heating
    Features
  • Programable 7 Day 24 Hour Digital Timer switch.
  • Floor or Air Sensing
  • 2 programming mode options
    Mode 1 - 5/2 timer allows you to set different times for weekdays & weekends Mode 2 - 7 day timer - set all 7 days independent times
  • Slimline design
  • Blue back light when operating
  • Responsive digital touchscreen
  • Thermostat maximum load is 16 amps / 3700 watts
  • 2 year warranty


    • Programming instructions TS8100W-TH/TIM-DUAL-V therm / timer

    Download

    DIN Rail Thermostat

    ETV-1191
    + $10 Incl GST

    Or purchase separately for $185 incl GST

    din-rail-thermostat-etv-1191

    Suitable for home automation when remote control of the system is required
    Features
  • On/off control up to 3,600 W, 16 A.
  • Built-in setback mode
  • Electronic thermostat
  • Floor sensor
  • For DIN-rail mounting
  • 5 ºC fixed setback temperature
  • 0.4 ºC fixed differential
  • 2 year warranty
    •





    Specifications for ETV-1191 thermostat


    Download

    Choose your kit size

    Kits for bathrooms
    In-screed mat price list - @200w per square metre

    This system is used when a sand and cement bed is needed.
    All prices quoted INCLUDE a digital thermostat and GST

    Output Watts

    Max length linear mtrs
    (50cm wide)

    Heated floor area
    @200w per sqm

    Kit price

    200

    2

    1.2 - 1.7

    $315

    300

    3

    1.7 - 2.1

    $371

    400

    4

    2.2 - 2.6

    $399

    500

    5

    2.7 - 3.2

    $413

    600

    6

    3.3 - 4.2

    $441

    700

    7

    4.2 - 4.3

    $476

    800

    8

    4.3 - 5.2

    $518

    1000

    10

    5.3 - 6.3

    $560

    1200

    12

    6.4 - 7.5

    $609

    1400

    14

    8.2 - 9.2

    $644

    1600

    16

    9.2 - 10.3

    $686

    DIY In-screed Mat
    Installation Instructions


    Download Instructions

    Download the Floor Heating
    Mats Brochure


    Download Brochure

    Download the Timer and Thermostat Brochure


    Download Brochure

    Buy a DIY floor heating kit

    Call or email us with your requirements or arrange for Peter to quote you on a full installation


    Request a Floor Heating Quote Today

    Complete your winter comfort with a heated towel rail.
    Choose from round bar rails or square

    Round heated towel rails

    11 bar round heated towel rail RTR05
    Suited to any style of bathroom, our round heated towel rails are the perfect addition for year round comfort. With a stylish mirror finish, towel rails are easy to install and cheap to run


    Square heated towel rails

    square heated towel rail STR01 7 bar
    Square rails are sleek, stylish and suited to contemporary bathrooms. Quick drying makes them a sensible option for ensuring your towels are dry whenever you need them
